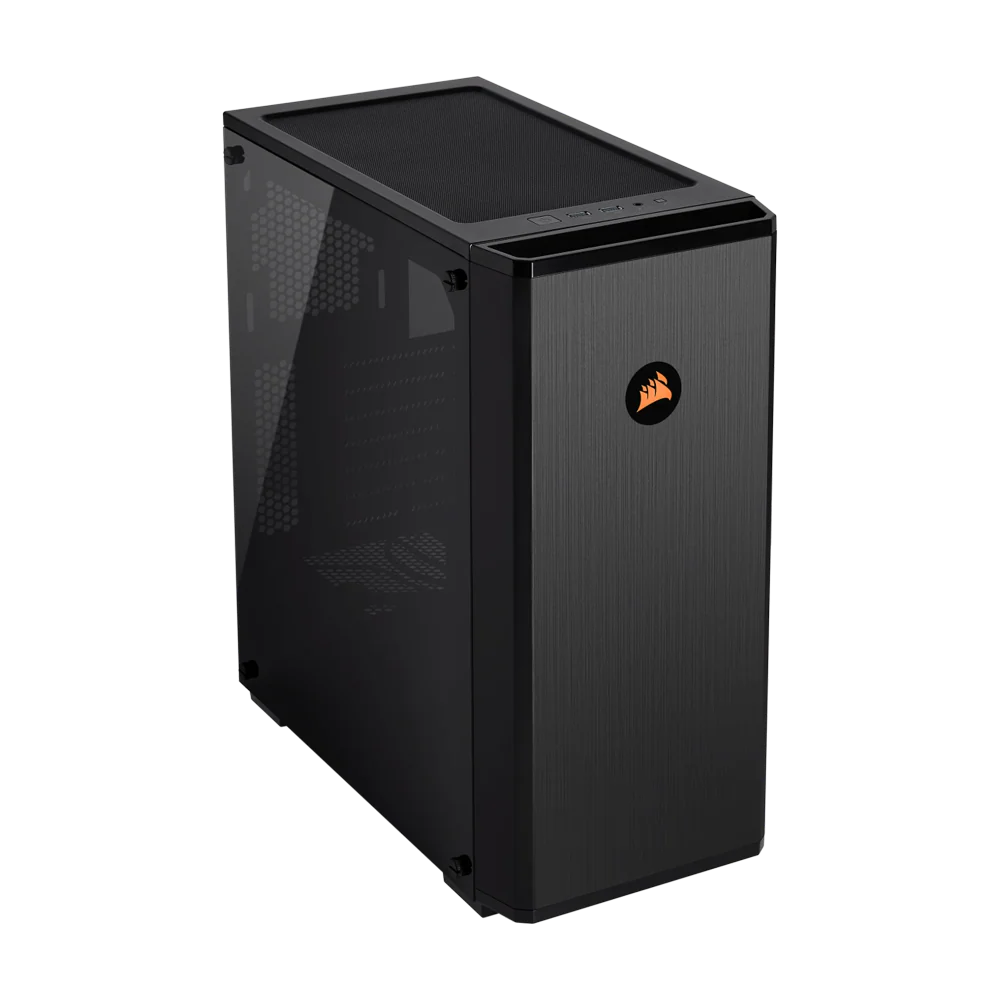

Corsair Carbide Series 175R RGB Tempered Glas ATX Mid-Towers Case - Black

The Carbide Series 175R RGB is a mid-tower ATX case designed with clean lines and accented with an included RGB cooling fan in front and an edge-to-edge tempered glass side panel.

CLEAN AND CLASSIC

Defined by a streamlined design and a front-facing CORSAIR logo backlit by an RGB fan with six customizable RGB LEDs.

EDGE-TO-EDGE TEMPERED GLASS SIDE PANEL

Show off your systems components with a fully transparent window into your PC.

FULL-LENGTH PSU COVER

Hide your PSU and cables out of sight, making immaculate builds easier to create than ever.

MASSIVE COOLING POTENTIAL

Fits up to 6x 120mm or 4x 140mm cooling fans, or multiple radiators in sizes up to 360mm.

COMPATIBLE WITH MOTHERBOARD RGB CONTROL

Connect the included RGB fan to compatible Asus, Gigabyte, or MSI motherboards with 12V RGB headers and their accompanying software to customize and control RGB fan lighting.

FLEXIBLE STORAGE OPTIONS

Supports up to four drives for the storage options you need: two combo 3.5in / 2.5in trays in a removable cage and two 2.5in trays.

KEEP YOUR SYSTEM CLEAN

Dust filters in the floor, roof and front help keep your system clean long after the build is finished.

UP-FRONT CONNECTIONS

A front I/O panel with two USB 3.1 Type-A ports and a 3.5mm combined microphone/headphone jack provides easy access to your favorite devices.

COMPATIBILITY

• Mini-ITX
• MicroATX
• ATX

Specifications

• Case Dimensions:  418mm x 210mm x 450mm

• Maximum GPU Length: 330mm

• Maximum PSU Length:  180mm

• Maximum CPU Cooler Height: 160mm

• Case Expansion Slots:    7

• Case Drive Bays:  (x2) 3.5in (x2) 2.5in

• Case Form Factor:   Mid-Tower

• Case Windowed:  Tempered Glass

• iCUE enabled:  No

• Case Material:  Steel, Tempered Glass

• Radiator Compatibility: 120mm, 140mm, 240mm, 280mm, 360mm

• Compatible Corsair Liquid Coolers:   H55, H60, H75, H80i, H90, H100i, H105, H110i, H115i, H150i

• Case Power Supply:  ATX (not included)

• Weight:   6.1kg/13.45lbs

• Lighting:  RGB

• Case Drive Bays 3.5" : 2

• Case Drive Bays 2.5" : 2
