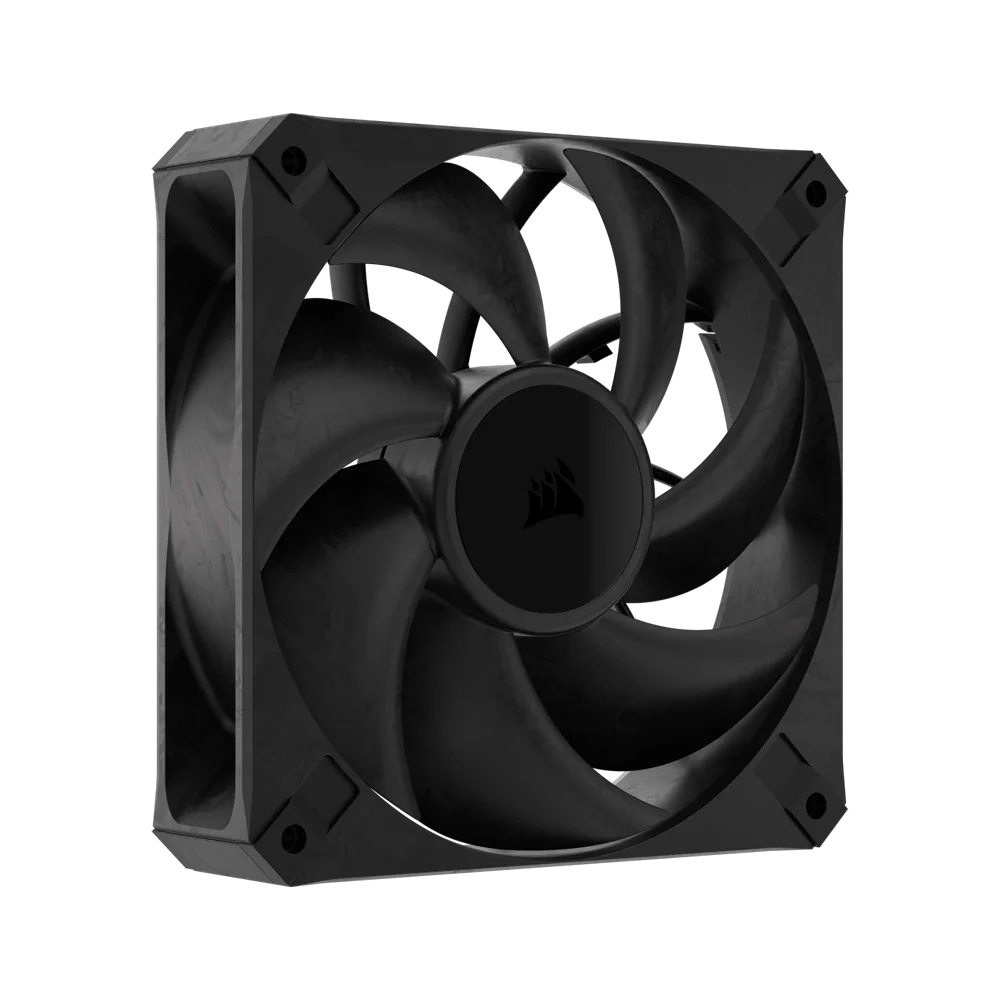

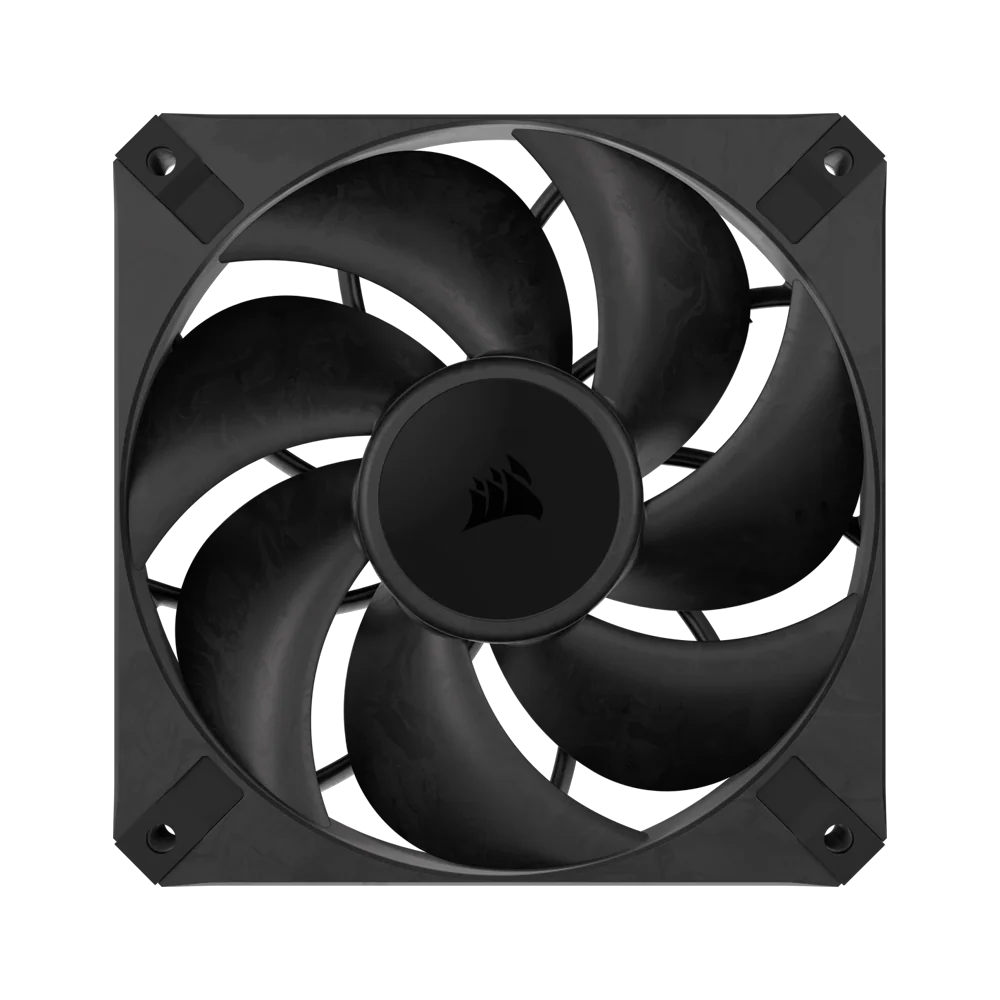

CORSAIR RS120 MAX - 1 x 120mm PWM Thick Single Fan - Black

Maximize your cooling efficiency with a CORSAIR RS120 MAX PWM Thick Fan, boasting a 30mm thickness for very high static pressure with premium liquid crystal polymer construction.

PERFORMANCE WHERE IT MATTERS

GREATER THICKNESS, GREATER PERFORMANCE

At 30mm, RS MAX fans are 20% thicker than the standard PC cooling fan. This translates directly into additional cooling power for your PC, with stronger airflow and static pressure generated by the larger fan blade.

ENGINEERED FOR SUPERIOR AIRFLOW AND QUIET OPERATION

RS MAX fans leverage CORSAIR’s expert engineering and design to maximize every benefit of its thicker housing.

AIRFLOW

A larger fan blade with an optimized blade shape pushes a greater volume of air through your PC case.

STATIC PRESSURE

High static pressure makes the RS MAX ideal for radiator mounting, as it can push air more effectively through dense obstructions.

LOWER NOISE

Can spin at a lower RPM to reach the same airflow as a thinner fan, reducing the fan noise generated by your PC.

RIGID MATERIAL MEANS CONSISTENT PERFORMANCE

GLASS FIBER REINFORCED LCP

Constructed from glass fiber-reinforced liquid crystal polymer, RS MAX Series fan blades offer the ultimate in radiator fan blade rigidity. The premium material prevents fan blade bending or buckling under varying degrees of static pressure, ensuring that optimal radiator flow is available at any fan speed.

CONCENTRATED COOLING

CORSAIR AIRGUIDE TECHNOLOGY

Anti-vortex stator vanes behind the fan blade focus airflow into a tight cone for more effective cooling as a case fan or better heat dissipation as a radiator fan.

EVERY SOURCE OF NOISE ADDRESSED

CORSAIR MAGNETIC DOME BEARING

This improved bearing minimizes friction and mechanical noise, achieving a balance between high airflow performance and low acoustic footprint. On top of that, the reduced friction means greater longevity for your fan.

STRENGTH IN NUMBERS

RIGOROUSLY TESTED AND PERFECTED FOR PERFORMANCE

Extensive testing bears out the RS MAX Series’ exceptional cooling performance, in both case fan and radiator fan applications. Read more about how radiator fan performance is actually measured, what the specifications mean in practice and what separates good fans from great fans.

Specifications

• Product Number : CO-9050170-WW

• Weight : 0.295

• Fan Size : 120mm x 30mm

• Package Quantity : 1

• Power Draw : 0.18A

• PWM Control : Yes

• Sound Level : 29.5 dBA

• Fan Static Pressure : 0.22 - 4.2 mm-H2O

• LINK Compatibility : None

• CORSAIR LINK compatibility : No

• Fan Airflow : 16.5 - 72 CFM

• Flow Type : STATIC PRESSURE

• Speed : 2000 RPM +/- 10%
