Key Features:

• 16GB

• DDR5

• 6000MT/s

• CL36

• RGB

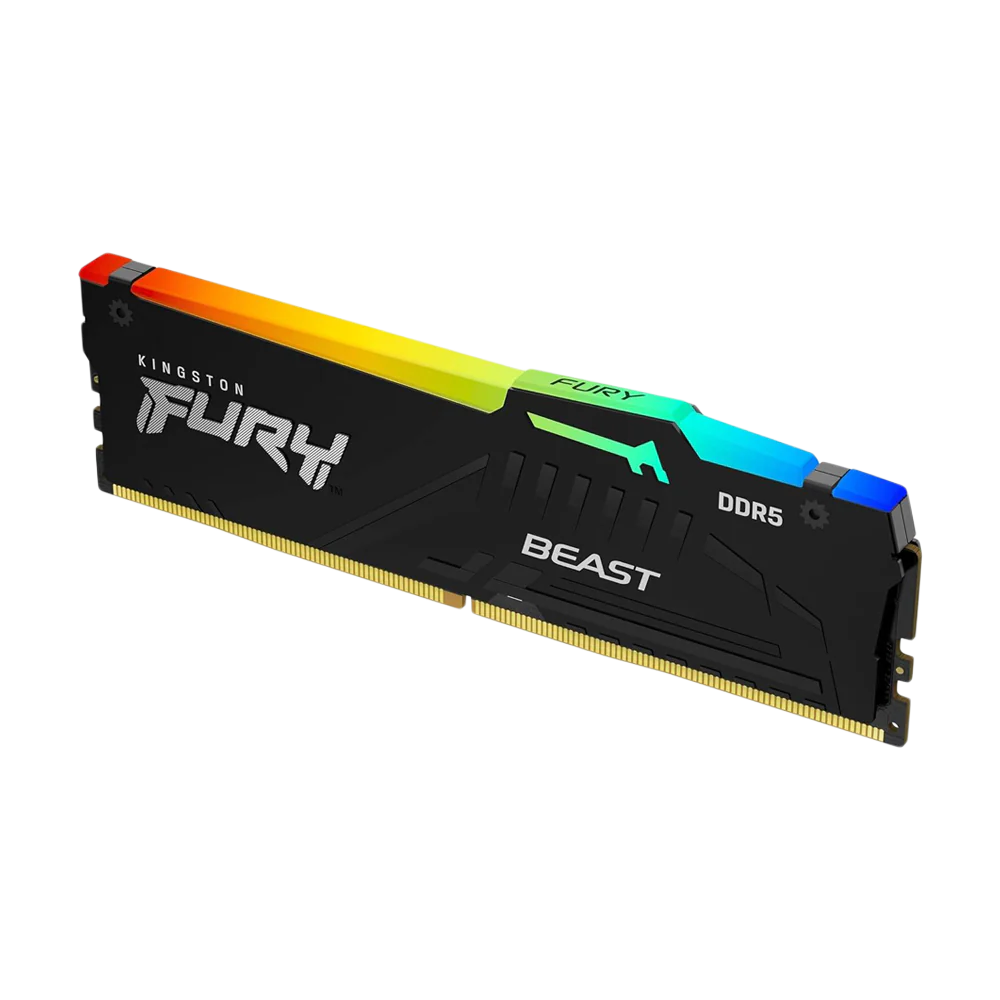

Kingston FURY KF560C36BBE2A-16 is a 2G x 64-bit (16GB) DDR5-6000 CL36 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 2G x 8-bit FBGA components per module.  The module supports AMD® EXPO v1.1 and Intel® Extreme Memory Profiles (Intel® XMP) 3.0.  Each module has been tested to run at DDR5-6000 at a low latency timing of 36-44-44 at 1.35V.  The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V.  Each 288-pin DIMM  uses gold contact fingers.  The JEDEC standard electrical and mechanical specifications.

Specifications

• CL(IDD) : 40 cycles

• Row Cycle Time (tRCmin) : 48ns(min.)

• Refresh to Active/Refresh : 295ns(min.)

• Command Time (tRFCmin) : 32ns(min.)

• Row Active Time (tRASmin)

• UL Rating : 94 V - 0

• Operating Temperature : 0o C to +85o C

• Storage Temperature : -55o C to +100o C
