Key Features:

• PCIe Gen4x4 interface and complies with the NVMe 1.4 standard

• Sequential Read speeds up to 3550MB/s and Write speeds up to 2700MB/s

• Up to 1120 TBW

• Built-in data security and error-correction capabilities

• 1TB capacity in M.2 2280 form factor

• Suitable for both desktop and notebook

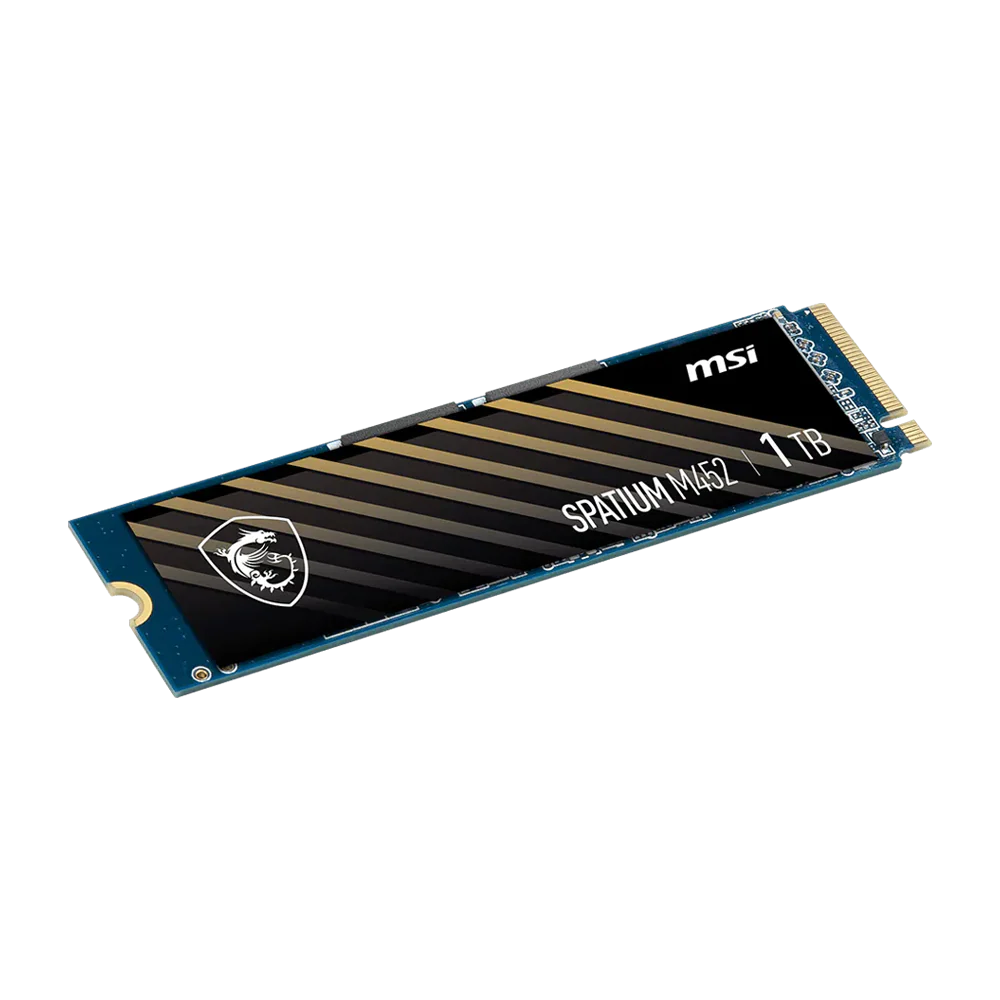

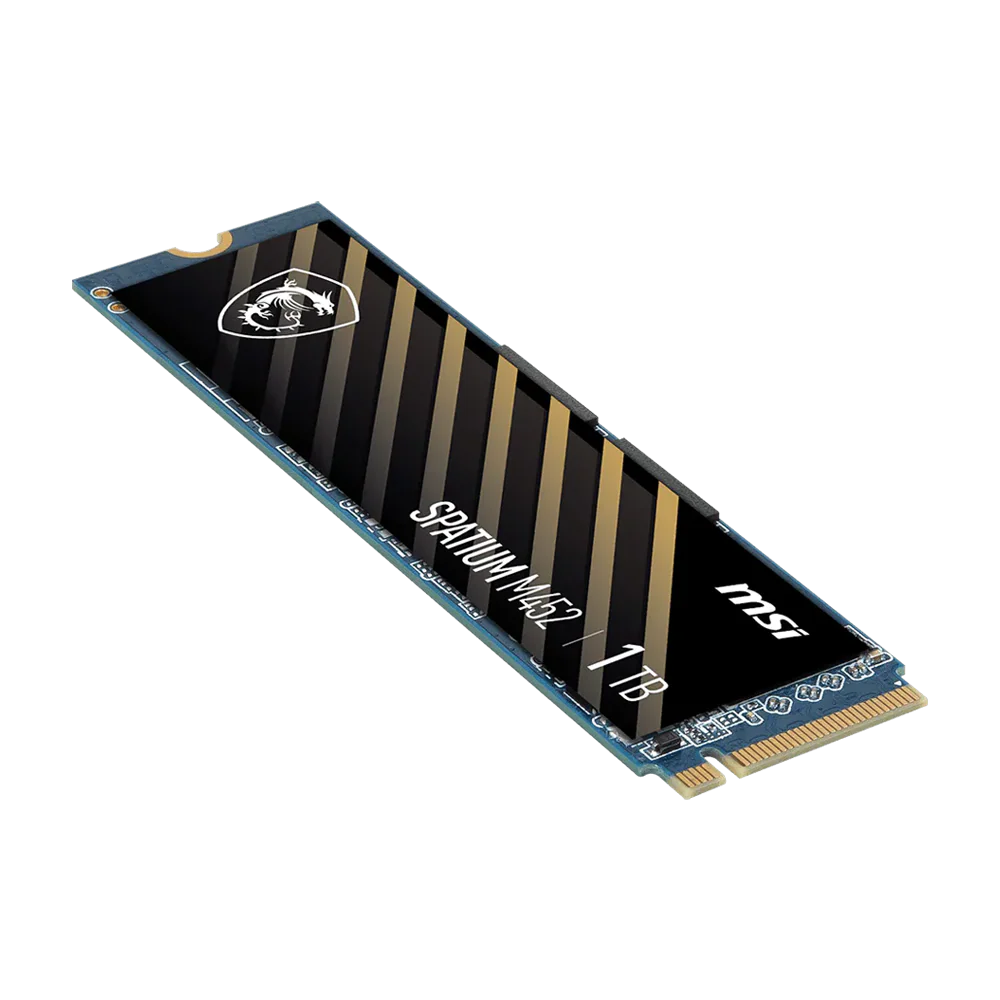

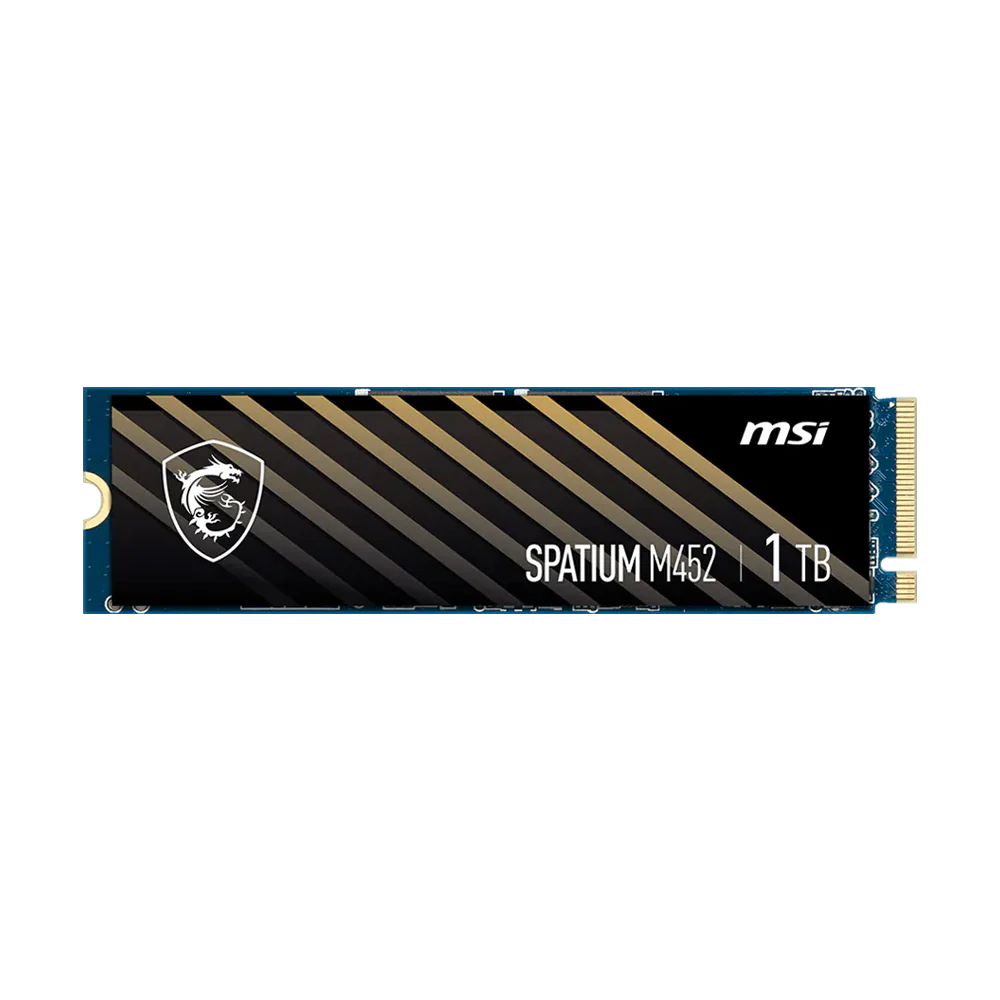

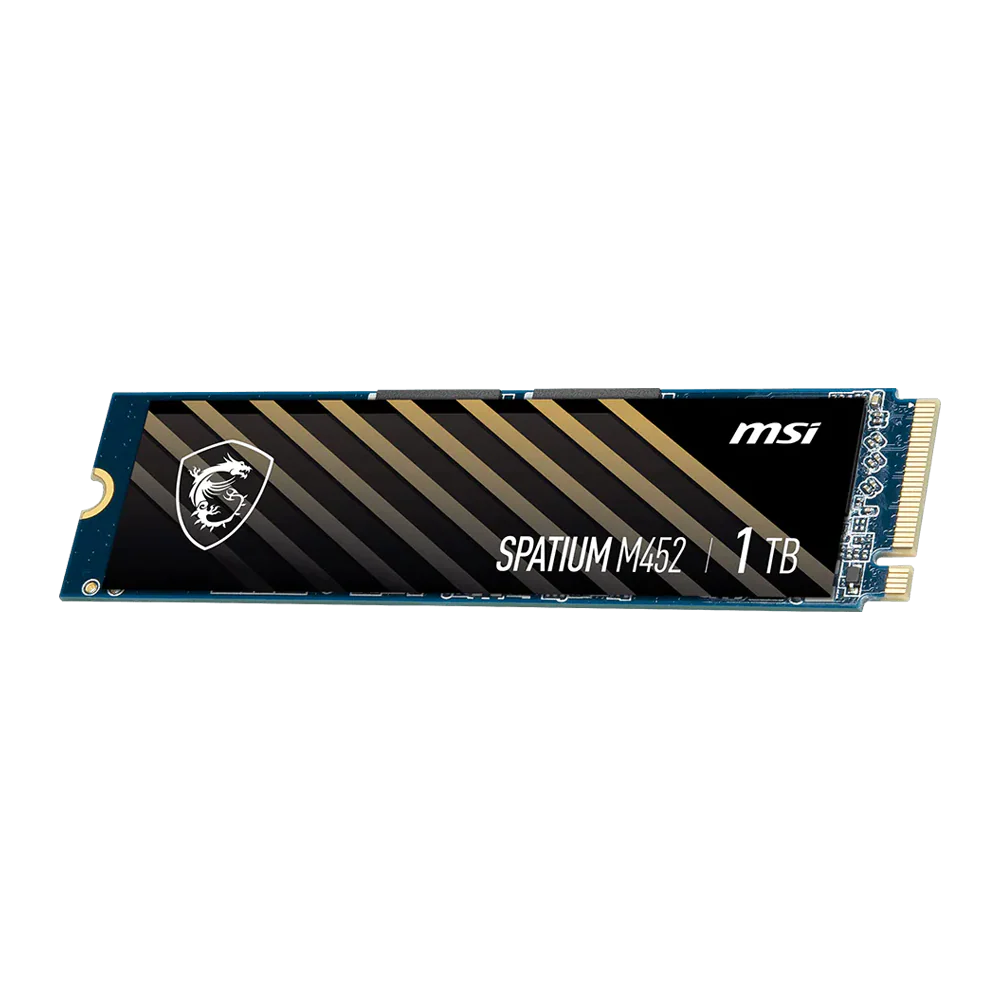

M452 CHARGING AHEAD WITH SPEED

From the MSI universe comes storage with blazing speeds and incredible performance. Take your system to the next level with SPATIUM.

A Need for Speed!

Optimized for the PCIe Gen4 interface, SPATIUM M452 SSD reaches read/write speeds up to 3600/3100 MB/s, allowing for rapid data transfer and shortened game load times.

Small Size, More Storage

The latest 3D NAND flash technology brings dense storage in a compact design and allows SPATIUM storage capacities up to 1TB.

Don't STOP GAMING

Built-in data security and error-correction capabilities extend the endurance and longevity of the NAND flash storage.

Real-Time SSD Monitoring & System Stability

Monitor SSD health and key metrics in real time through MSI Center. Stay informed with live updates on drive condition, enabling proactive management to ensure stable and reliable system performance.

Specifications

• Model Name : SPATIUM M452 PCIe 4.0 NVMe M.2

• Capacity : 1TB

• Controller : PHISON E29T

• Flash Memory : 3D NAND

• Form Factor : M.2 2280

• Interface : PCIe Gen4 x4, NVMe 1.4 (2CH)

• Compatibility : PCIe Gen4 / Gen3 / Gen2 / Gen1

• Dimensions : 80.00mm (L) x 22.00mm (W) x 2.15mm (H)

• Sequential Read up to (MB/s) : 3600

• Sequential Write up to (MB/s) : 3100

• Random Read 4KB up to (IOPS) : 500,000

• Random Write 4KB up to (IOPS) : 750,000

• Idle Power PS3 (mW) : 50

• Low Power L1.2 (mW) : 5

• Operating Temperatures : 0°C – 70°C

• Storage Temperatures : -40°C – 85°C

• Terabytes Written (TBW) : 300

• Mean Time Between Failure (MTBF) : Up to 1,500,000 Hours

• Advanced Features : TRIM (Performance Optimization, OS Support required)

• SMART (Self-Monitoring, Analysis and Reporting Technology)

• LDPC (Low Density Parity Check) ECC Algorithm

• End to End Data Path Protection

• APST (Autonomous Power State Transition)

• Pyrite (Encryption, Data Security)
